Venturi Effect Two-Fluid Atomization Technology
Description
High-performance cold atomization solution built on classic Venturi fluid mechanics principle. Water-free & heat-free, fully preserves the original aroma molecules of Essential Oils and delivers uniform dry mist. It is the core atomization technology for home cold mist Diffusers, car cold mist diffusers and commercial cold mist diffusers.
Technology Introduction

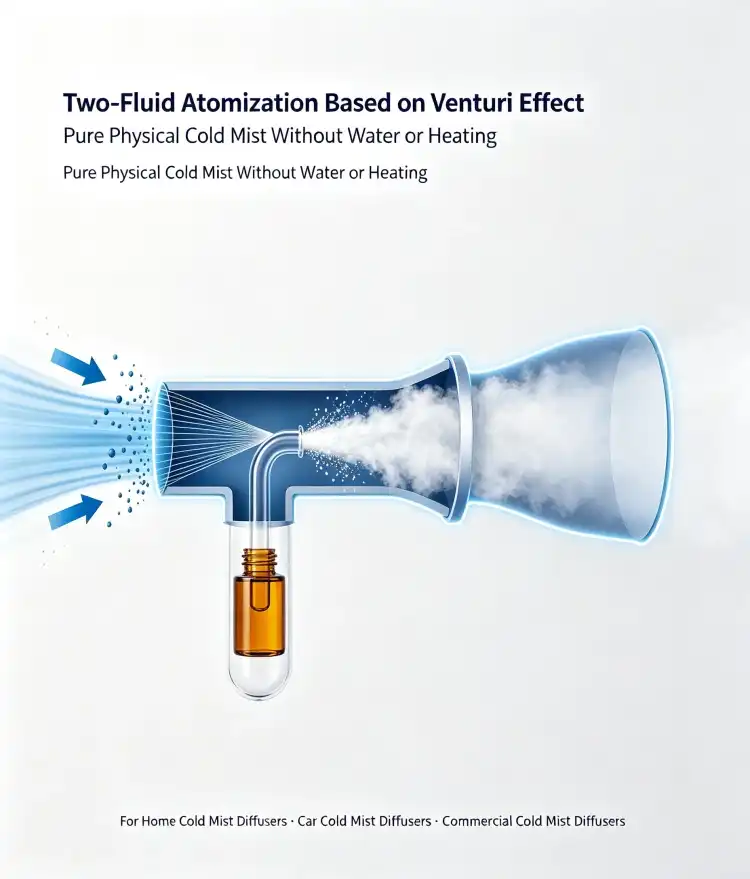

Two-fluid atomization technology is based on the Venturi effect as its underlying physical principle. It is a high-performance cold atomization solution widely adopted in the fragrance diffusion industry. The entire atomization process relies purely on fluid-mechanical physical shearing, no heating and no water required. When pressurized airflow flows through the constricted throat of precision nozzle, flow velocity surges and creates negative pressure inside the chamber to automatically draw essential oil liquid. Two streams of fluid — gas and liquid — collide and shear at high speed inside the mixing chamber, breaking essential oil into micron-sized dry mist particles that spread evenly into the air with airflow.
Different from ultrasonic and heated ceramic-core atomization solutions, Venturi two-fluid atomization carries no risk of thermal degradation. The mist particles are dry and residue-free. It is compatible with natural essential oils and blended fragrance formulas of various viscosities, widely applied in home cold mist diffusers, car cold mist diffusers and commercial cold mist diffusers.
Working Principle (4-step physical atomization process, place your 4 storyboard images here)

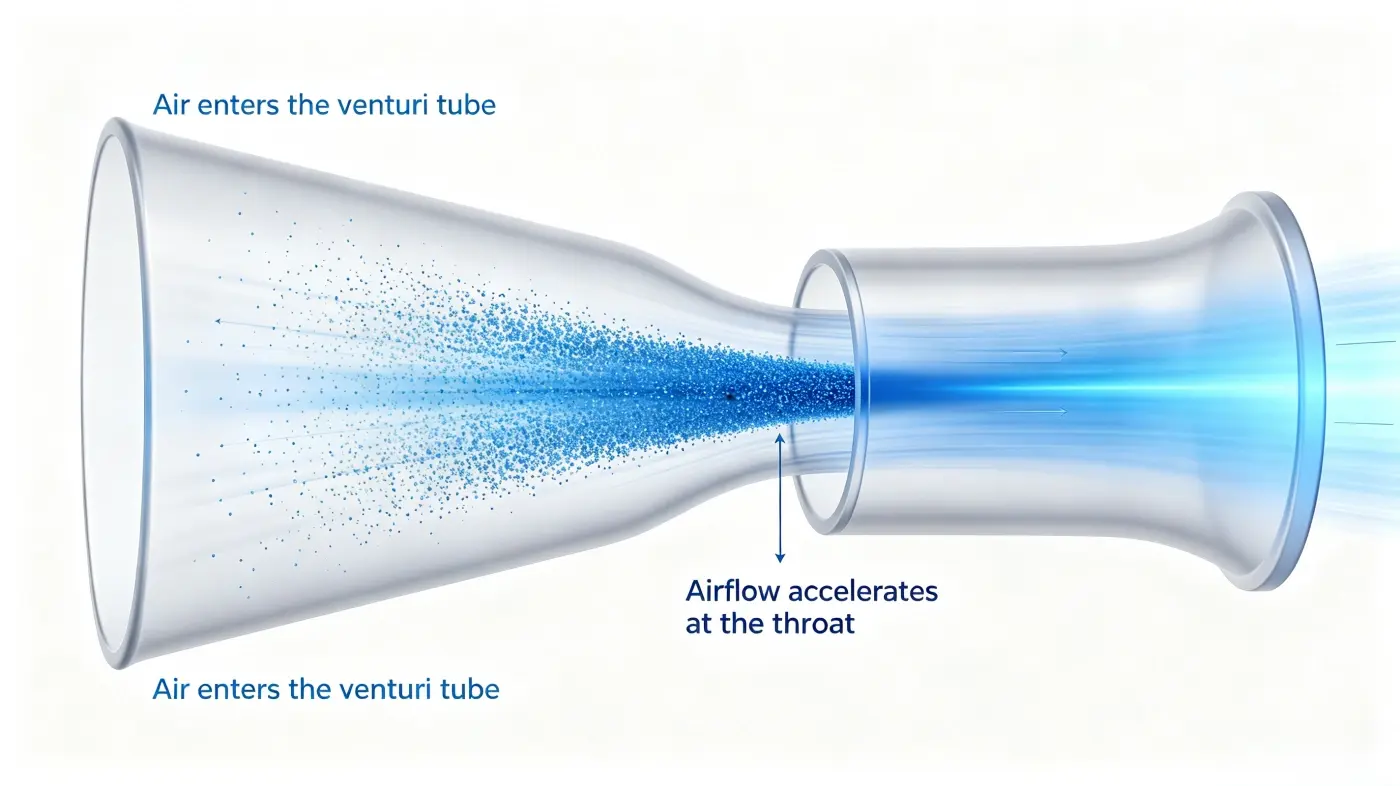

- Airflow Acceleration: Stable compressed air enters the precision Venturi pipe. When passing through the constricted throat, flow velocity rises rapidly. Per Bernoulli’s principle, negative pressure vacuum zone forms at the throat.

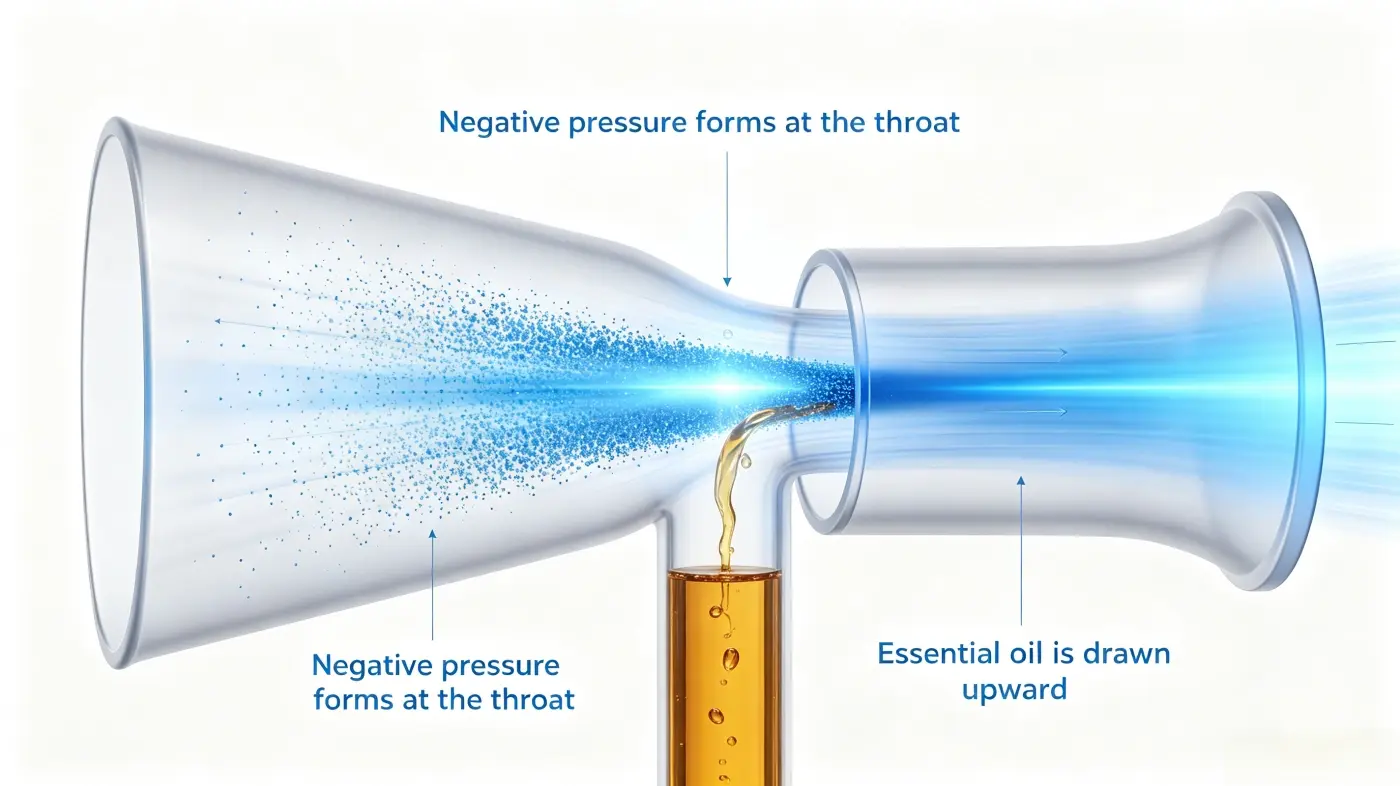

- Liquid Suction by Negative Pressure: Suction force generated by throat negative pressure pulls pure essential oil from the reservoir upward through the liquid guide tube into the mixing chamber.
- Gas-Liquid Shearing & Fragmentation: High-speed airflow and sucked essential oil converge, collide and shear intensely in the mixing chamber. Liquid is torn and broken into micron-scale ultra-fine essential oil droplets.

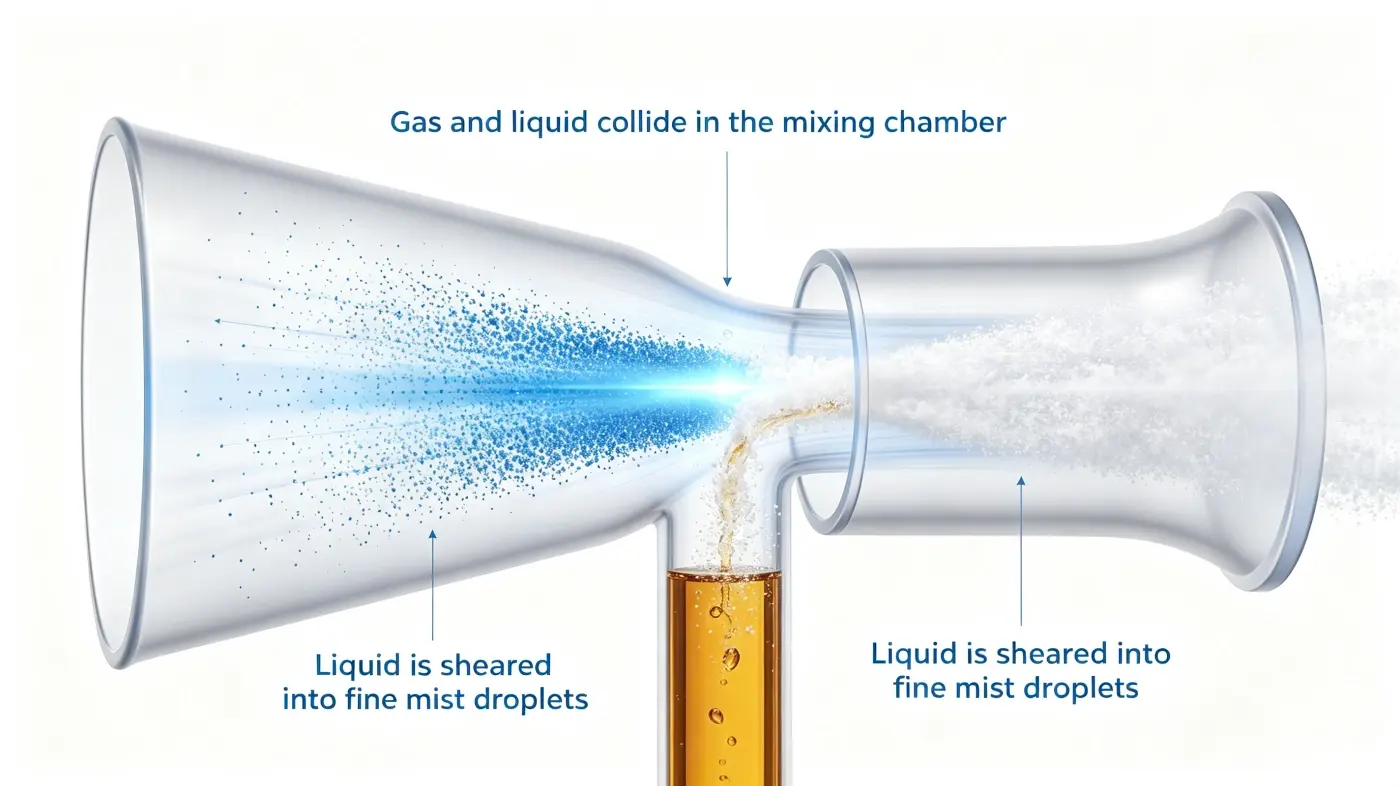

- Dry Mist Release & Diffusion: The formed dry fine mist sprays outward from the nozzle. Mist particles stay suspended in air for a long time and spread evenly across the whole space without liquid dripping or surface residue.
Technical note: The whole atomization is a pure physical cold atomization process with zero heat source and no water dilution. Molecular structure of essential oil aroma will not be damaged by high temperature, restoring the true scent layers of raw aromatic materials.
5 Core Technical Advantages
✅ Water-free Cold Atomization, Full Preservation of Aroma Molecules No heating and no water tank. Eliminate thermal oxidation and decomposition of essential oils, keeping top, middle and base notes intact. Avoid bacteria growth and mold inside water tanks. Ideal for home cold mist diffusers, car cold mist diffusers and commercial cold mist diffusers.
✅ Uniform Micron Dry Mist, No Residue on Surfaces Atomized particle size stably controlled within 1–5μm. Dry and lightweight mist particles float in air for long periods and will not leave oil film stains on furniture, walls or car interiors.
✅ Wide Compatibility with Essential Oils, Suitable for Fragrance Liquids of Different Viscosities Atomization depends on fluid shearing instead of liquid conductivity. It can stably atomize natural single essential oils, custom blends and high-viscosity botanical fragrances, supporting rich scent formulations.
✅ Stable Long-Term Continuous Operation, Longer Service Life No fragile ceramic vibrating plates or piezoelectric chips. The core nozzle adopts corrosion-resistant precision structure. It maintains stable atomization particle size with low clogging risk and low maintenance cost, perfect for long non-stop running of commercial cold mist diffusers.
✅ Low Energy Consumption, Adaptable for Multi-Space Scenting Only stable low-pressure air source required with low power consumption. Mist output can be precisely adjusted to fit small homes, car cabins and large spaces such as hotels & exhibition halls. Covers full product range of home cold mist diffusers, car cold mist diffusers and commercial cold mist diffusers.
Technology Comparison Table
| Technology | Venturi Two-Fluid Atomization | Ultrasonic Atomization | Heated Ceramic Core Atomization |
|---|---|---|---|
| Atomization Principle | Venturi negative pressure + gas-liquid shearing, cold physical atomization | High-frequency vibration cavitation, water required | High-temperature heating and vaporization |
| Water Required | ❌ No water | ✅ Requires water | ❌ No water |
| Heating Required | ❌ Room temperature all the time | ❌ Room temperature | ✅ High temperature heating |
| Mist Condition | Dry micron mist, no residue | Water-containing mist, prone to condensation | High-temp vaporization, aroma easy to deteriorate |
| Essential Oil Preservation | ★★★★★ Full retention of aroma molecules | ★★☆☆☆ Scent diluted by water | ★★★☆☆ Top notes easily damaged |
| Clogging Risk | Low | Medium (limescale + essential oil sediment) | High (carbon deposition & coking) |
| Applicable Devices | home cold mist diffusers, car cold mist diffusers, commercial cold mist diffusers | Water-based home aroma machines | High-temperature aroma diffusers |
Core Technical Specifications
| Item | Specification |
|---|---|
| Atomization Principle | Venturi effect, two-fluid pneumatic cold atomization |
| Mist Particle Size | 1–5μm (stable Dv50 median particle size) |
| Operation Mode | Pure physical atomization, heat-free & water-free |
| Compatible Liquid Viscosity | 15–85 cP, compatible with most essential oils & fragrances |
| Operating Noise | ≤35dB (with silent air pump module) |
| Output Feature | Dry mist output, no increase of ambient humidity |
| Core Material | Corrosion-resistant precision nozzle, oil resistant |
| Continuous Operation | Supports 7×24h non-stop commercial operation |
| Compatible Products | home cold mist diffusers, car cold mist diffusers, commercial cold mist diffusers |
Application Scenarios
- Home Use: Premium home cold mist diffusers, desktop aroma machines, scent creation for bedrooms & living rooms
- Automotive Use: car cold mist diffusers, in-car fragrance without damaging car interiors
- Commercial Scenting: commercial cold mist diffusers, scent marketing for hotel lobbies, real estate showrooms, exhibition halls, brand stores and office buildings
- HVAC Solution: Central air conditioning fragrance systems, multi-zone distributed scent diffusion equipment
- Other Fields: Micro liquid atomization in labs, industrial micro-lubrication, dry mist disinfection, etc.
Quality & Compliance Certifications
The full atomization modules and finished aroma devices meet international export standards: CE, RoHS, FCC, compliant with EU Battery Directive UN38.3. Third-party testing and sample testing available. OEM / ODM customization supported. We can adjust nozzle structure, mist output and overall appearance according to client requirements.
FAQ
Q1: Can Venturi two-fluid atomization technology work with pure essential oils directly? Is it universal for home cold mist diffusers, car cold mist diffusers and commercial cold mist diffusers?
A: Yes, pure essential oil can be atomized directly with no water dilution needed. The same atomization principle works for home cold mist diffusers, car cold mist diffusers and commercial cold mist diffusers. Only air pump power and nozzle specs need adjustment for different space sizes.
Q2: Will the mist generated by two-fluid atomization leave oil marks on furniture or car interiors?
A: No. It produces dry micron-sized mist particles that float and diffuse in air. Under normal operation, no oil film residue will form on walls, furniture or car interiors. Minor deposition may occur only under continuous ultra-high mist output, which can be avoided by using intermittent working mode.
Q3: What are the key advantages of Venturi two-fluid cold mist diffusers compared with ultrasonic aroma machines?
A: Ultrasonic machines need water, which easily breeds bacteria and increases ambient humidity. The Venturi-based two-fluid solution is water-free cold atomization and fully preserves aroma layers of essential oils. Commercial cold mist diffusers support 7×24h continuous operation; car cold mist diffusers will not corrode interiors; home cold mist diffusers are suitable for bedrooms at night.
Q4: Is this atomization module easy to clog? How to maintain it routinely?
A: Much lower clogging risk than ceramic core atomization structures. We recommend cleaning the nozzle and liquid guide tube with isopropyl alcohol periodically. For commercial cold mist diffusers, weekly maintenance is suggested. For home cold mist diffusers and car cold mist diffusers, clean every 2–4 weeks based on usage frequency to maintain stable long-term performance.
Q5: Can you provide OEM/ODM customization? Can I purchase only the core atomization module?
A: OEM & ODM customization is available. We supply standalone Venturi two-fluid core atomization modules for clients to integrate into your own home cold mist diffusers, car cold mist diffusers and commercial cold mist diffusers. Custom mist volume, nozzle dimension and air source parameters are available, sample testing supported.
Q6: Is the operating noise loud? Is it suitable for bedrooms and car cabins?
A: With silent air pump module, running noise ≤35dB. Home cold mist diffusers fit bedrooms for night use, and car cold mist diffusers will not disturb the in-car environment. For commercial cold mist diffusers, silent modules can be selected for quiet spaces such as hotels and exhibition halls.
Q7: What types of essential oils are supported? Can high-viscosity blended fragrances be atomized?
A: Compatible with fragrance liquid viscosity of 15–85cP. Single essential oils and custom blended fragrances can be atomized stably. Pre-evaluation of samples is required for extremely high-viscosity liquids, and we provide atomization testing service.
Q8: What is the service life of this technology?
A: The core Venturi nozzle adopts oil and corrosion resistant materials. Under proper maintenance, home cold mist diffusers and car cold mist diffusers can run stably for tens of thousands of hours. For commercial cold mist diffusers under 7×24h continuous working condition, service life outperforms piezoelectric ceramic atomization solutions.
