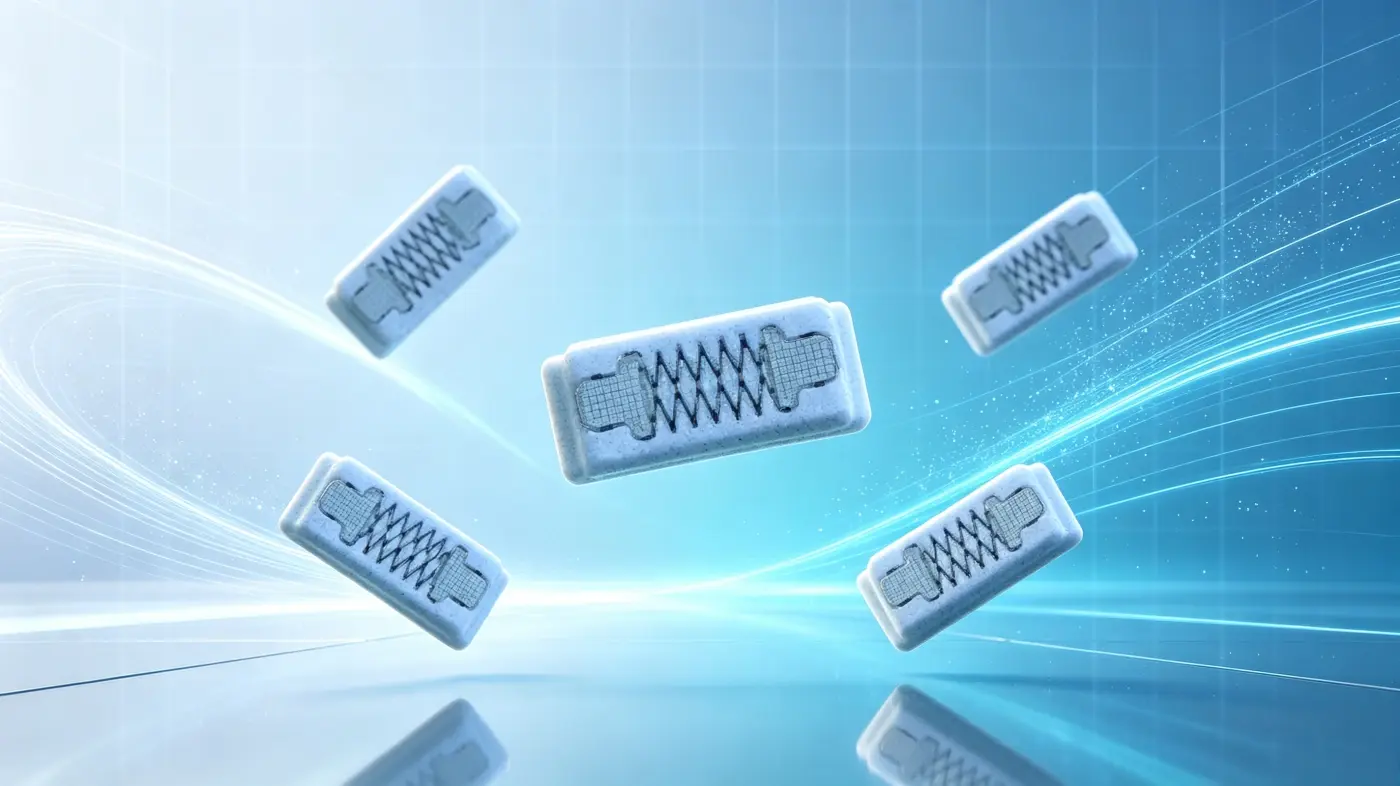

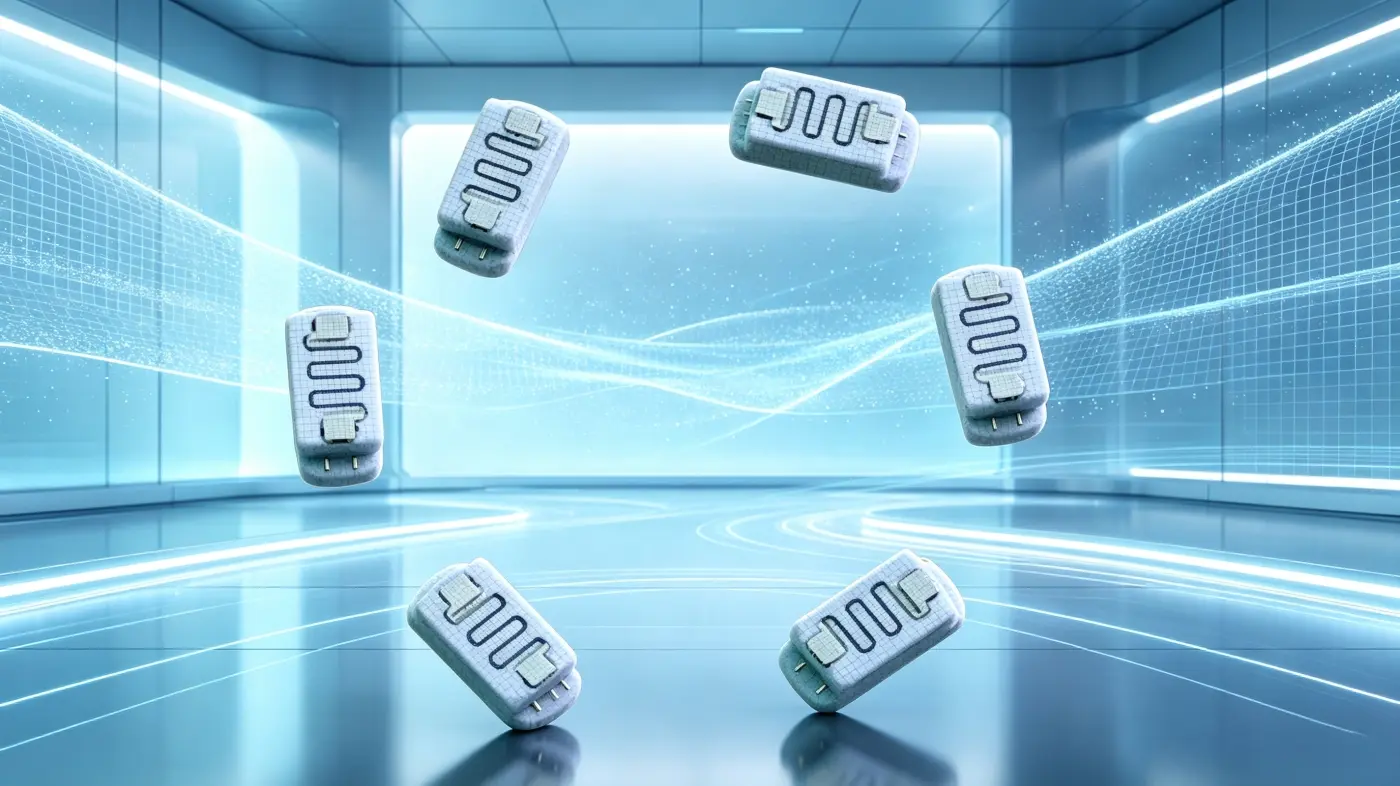

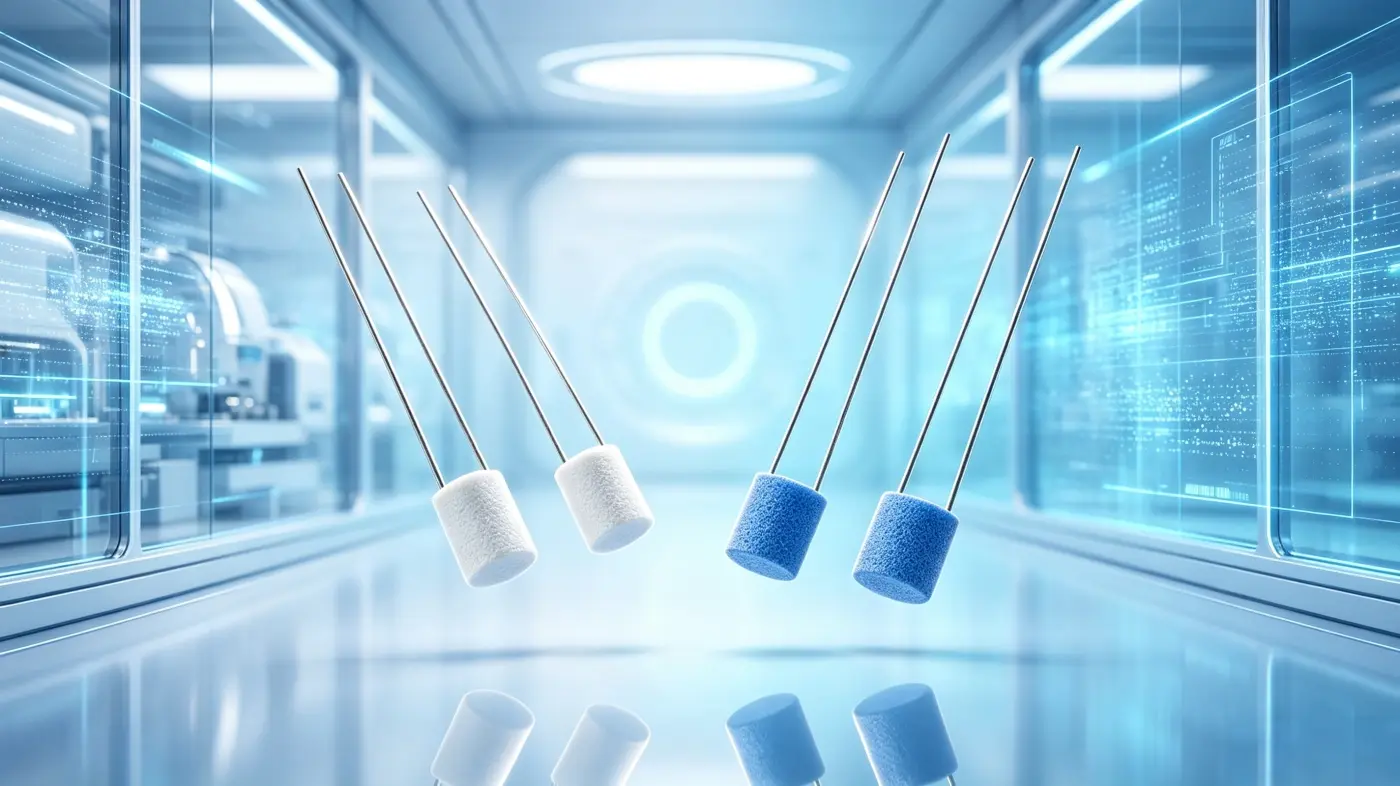

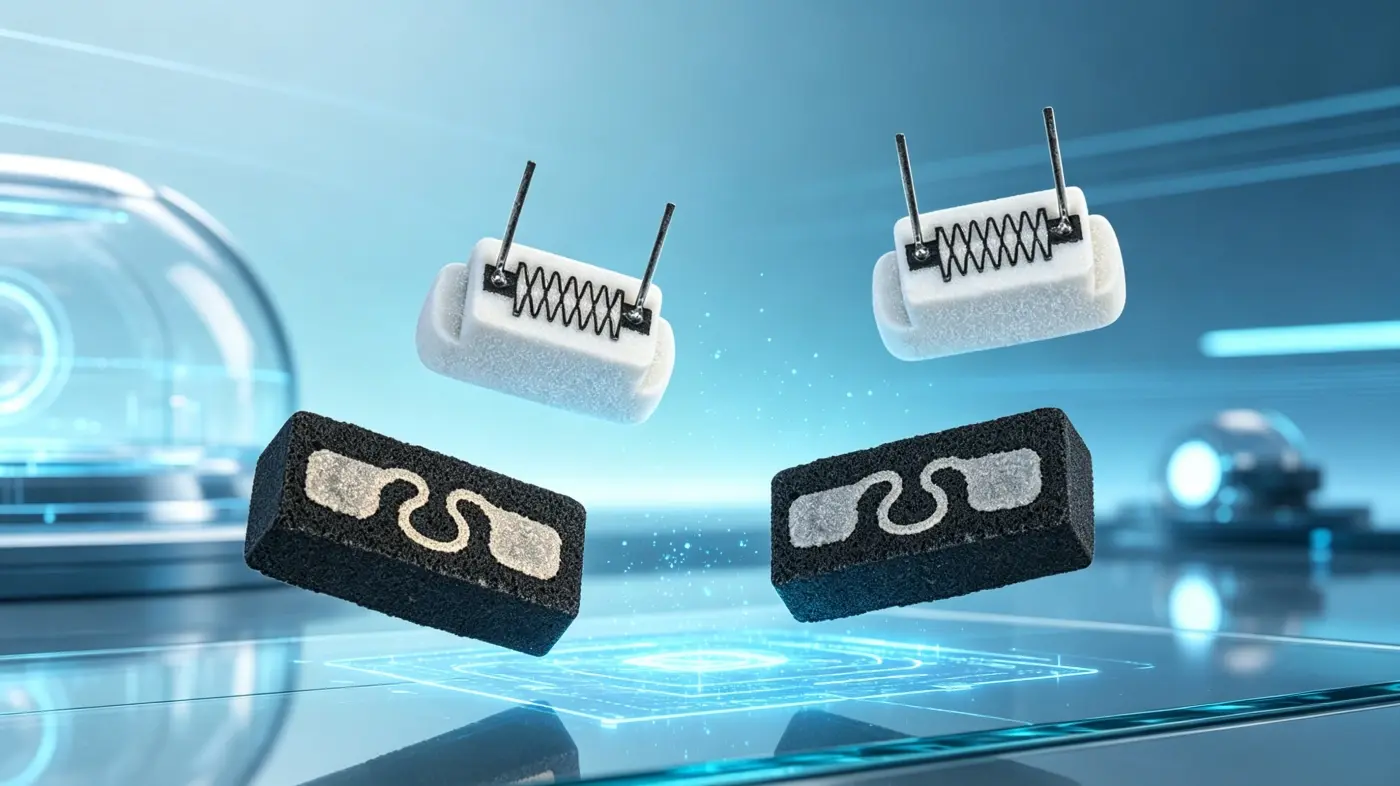

Ceramic Core | Ceramic Atomizing Core for Waterless Aroma Diffusers & Fragrance Machines

Ceramic Core is a high-performance ceramic atomizing core for fragrance machines, waterless aroma Diffusers, cold mist diffusers, home waterless aroma diffusers, and car aroma diffusers. OEM/ODM waterless aroma diffuser customization available.

Description

Qiwuecy Ceramic Core is a core atomizing component developed by Qiwuecy based on years of atomization technology research and accumulated experience. Designed for health-oriented atomization scenarios, it serves as the “power core” of fragrance machines, waterless aroma diffusers, cold mist diffusers, and other aroma devices. The ceramic core directly determines atomization efficiency, fragrance restoration, and safety performance. Qiwuecy Ceramic Core is built on porous ceramic material technology and integrates precision thick-film printing processes with gradient pore structure design. It comprehensively solves the core pain points of traditional cotton wicks, including dry burn, burnt core, leakage, fragrance decay, and poor consistency.

Atomizing core technology has evolved from glass fiber wicks to traditional cotton wicks, and then to ceramic cores. With precise temperature control capability, ceramic cores fundamentally solve problems such as dry burn, unstable fragrance, and burnt cores commonly found in traditional atomizing cores. They also solve the challenges of industrial mass production and assembly. While inheriting the core advantages of ceramic atomization technology, Qiwuecy Ceramic Core further optimizes pore structure regulation and integrated heating component design, providing highly reliable atomization core solutions for home waterless aroma diffusers, car aroma diffusers, cold mist diffusers, and other health-oriented fragrance devices.

Technical Specifications

Core Structure of the Ceramic Atomizing Core

The structural design of Qiwuecy Ceramic Core focuses on three core objectives: efficient liquid guiding, uniform heating, and stable atomization. It mainly consists of a porous ceramic matrix, a heating component, and an auxiliary fixing structure. These components work together to achieve efficient conversion from fragrance oil to aerosol.

1. Porous Ceramic Matrix

The porous ceramic matrix is the load-bearing core of the atomizing core. Qiwuecy selects high-purity alumina, zirconia, diatomaceous earth, and other ceramic materials. The pore structure is precisely regulated through pore-forming agents and formed through high-temperature sintering at 600–1200°C. Its typical parameters include a porosity of 30%–70% and an average pore size of 1–70μm, forming an interconnected honeycomb-like micro-pore network internally. Structurally, it adopts hollow cylindrical, boat-shaped, or semi-cylindrical designs. The surface contacting the fragrance oil is the liquid inlet surface, while the surface embedded with the heating element is the atomization surface. Through reasonable design of different pore size gradients, liquid absorption and atomization performance complement each other, greatly improving the overall performance of fragrance machines, waterless aroma diffusers, and cold mist diffusers.

2. Heating Component

The heating component is key to energy conversion. Qiwuecy Ceramic Core adopts a resistive heating film solution. Alloy resistance paste is printed onto the ceramic matrix surface through a screen printing process and sintered at 1000°C under nitrogen protection. The circuit shape uses optimized designs such as S-shaped and wave-shaped patterns to increase the heating area, with resistance controlled within the range of 0.7–3.0Ω. The excellent thermal conductivity of ceramic materials allows heat to be quickly and evenly transferred to the atomization surface. Temperature control accuracy is significantly better than traditional cotton wicks, effectively avoiding carbon deposition and burnt core issues caused by local overheating.

3. Auxiliary Fixing Structure

The auxiliary fixing structure includes a disc-shaped fixing part for connecting to the device bracket. Reinforcing ribs are added between the fixing part and the ceramic column to improve structural stability. At the same time, a heat insulation component is provided to reduce heat conduction to the bracket. The airflow channel design ensures smooth export of the aerosol after atomization, forming a reasonable gas-liquid circulation path.

Core Working Principle of the Ceramic Atomizing Core

The working process of Qiwuecy Ceramic Core is essentially an energy conversion chain of electrical energy—thermal energy—aerosol. It is divided into three key stages: liquid guiding, heating, and atomization. Relying on ceramic material properties and structural design, it achieves efficient coordination.

1. Capillary Liquid Guiding Stage

The fragrance oil in the liquid storage chamber generates capillary action through the micro-pore structure of the ceramic matrix and penetrates into the entire ceramic core along the liquid inlet surface. The high porosity and interconnectivity of porous ceramics ensure rapid diffusion of fragrance oil. At the same time, micro-pores can absorb an appropriate amount of fragrance oil to form a liquid film, achieving a dynamic balance between “liquid supply and atomization” and avoiding dry burn or liquid accumulation. Due to surface tension and capillary action, the fragrance oil can be evenly absorbed into the atomizing core and attached to its surface.

2. Energy Conversion Stage

After power is supplied, the resistive heating film converts electrical energy into thermal energy through Joule heating. The excellent thermal conductivity of ceramic materials allows heat to be quickly and evenly transferred to the atomization surface. Temperature control accuracy is significantly better than traditional cotton wicks, effectively avoiding local overheating, reducing carbon deposition and burnt core issues. Compared with metal wire resistance atomization technology, ceramic thick-film atomization technology uses the numerous micro-pores of the ceramic body to evenly guide fragrance oil into the heating area through surface tension and capillary action. It offers advantages such as high temperature resistance, large heating area, uniform temperature field distribution, and easy assembly.

3. Atomization Molding Stage

When the atomization surface temperature reaches the boiling point of the fragrance oil, the surface liquid film rapidly evaporates into fine droplets, which then mix with airflow to form an aerosol. The combination of a mesh heating film and gradient pore structure makes atomized particles finer and more uniform, improving fragrance restoration. At the same time, by regulating heating power, the atomization volume and particle size can be precisely controlled to adapt to different usage scenarios such as home waterless aroma diffusers and car aroma diffusers.

Core Advantages

• Precise Temperature Control: The thermal conductivity of ceramic materials makes heat distribution more uniform. Temperature control accuracy is significantly better than traditional cotton wicks, effectively avoiding burnt core and carbon deposition caused by local overheating.
• Dry Burn Resistance and High Temperature Resistance: The ceramic matrix offers excellent high-temperature resistance. Even short-term dry burning does not produce a burnt odor, greatly improving safety.
• Fine Atomization and Stable Fragrance: The micro-pore atomization technology of the ceramic core can achieve micron-level atomized particles, making the fragrance aerosol finer and delivering a purer, more stable fragrance experience.
• Long Service Life Design: Ceramic materials have strong chemical stability, corrosion resistance, and aging resistance. Service life is significantly better than traditional cotton wicks, reducing replacement frequency.
• Industrial Mass Production Consistency: Precision sintering processes and thick-film printing technology enable precise regulation of ceramic matrix porosity and pore size, ensuring high batch-to-batch performance consistency and meeting the needs of industrial large-scale production.

Why Choose Qiwuecy Ceramic Core Solution

In the fragrance device industry, the performance of the atomizing core directly determines the end-user experience. Compared with existing solutions in the industry, the Qiwuecy Ceramic Core solution offers the following differentiated advantages:

1. 14 Years of Atomization Technology Accumulation

Qiwuecy has been deeply engaged in atomization technology research and development for 14 years. From material formulation and pore regulation to heating circuit design, it has formed a complete independent R&D system. Ceramic core products adopt strict quality control standards in key processes such as material selection, sintering, and thick-film printing, ensuring stable and reliable performance of every ceramic core.

2. System-Level Matching Capability

The performance of a ceramic core is not determined by a single material alone, but by the coordination of material, structure, and process. Qiwuecy has full-chain R&D capability from ceramic powder formulation to heating circuit design and encapsulation structure. It can perform system-level optimization matching according to the customer’s fragrance system, such as Essential Oil viscosity and volatility, and device structure, rather than simply supplying standard products.

3. Health-Oriented Atomization Solution Positioning

Qiwuecy Ceramic Core is designed for health-oriented atomization scenarios such as home waterless aroma diffusers, car aroma diffusers, and cold mist diffusers. It uses food-grade safe ceramic materials. The atomization process does not change the molecular structure of essential oils, maximizing the retention of natural active ingredients. The ceramic material is chemically inert and does not react with fragrance oil components, eliminating odor generation.

4. Flexible Mass Production and Customization Capability

Qiwuecy has a mature ceramic core mass production line and supports full-process services from sample validation to bulk delivery. Key parameters such as porosity, pore size distribution, external dimensions, and heating circuit resistance can be customized according to customer needs. Minimum order quantities are flexible, adapting to product development needs of brands of different scales.

​​​​​​​

Applicable Devices

Qiwuecy Ceramic Core is widely suitable for the following device types:

• Home Waterless Aroma Diffusers

• Car Aroma Diffusers / Car Fragrance Machines

• Commercial Fragrance Machines

• Cold Mist Diffusers

• Portable Aroma Diffusers

Customization Service

Qiwuecy provides comprehensive OEM Waterless Aroma Diffuser Customization and ODM Waterless Aroma Diffuser Customization services. Key parameters such as ceramic matrix porosity, pore size distribution, external dimensions, heating circuit resistance, and shape can be customized according to customer device structure requirements and working parameters.

Customization Process:

Step 1: Requirement Communication — The customer provides device structure drawings, fragrance system parameters such as essential oil viscosity and target atomization volume, and power supply conditions. The Qiwuecy technical team conducts a feasibility assessment.

Step 2: Solution Design — Based on customer requirements, the Qiwuecy R&D team completes ceramic core structure design, material formulation selection, and heating circuit solution design, and outputs a preliminary technical solution.

Step 3: Sample Validation — Qiwuecy provides customized samples. The customer conducts complete machine assembly testing and performance validation. Qiwuecy adjusts parameters based on feedback.

Step 4: Mass Production Delivery — After sample confirmation, Qiwuecy starts mass production. Relying on precision sintering processes and thick-film printing technology, it ensures high batch-to-batch performance consistency.

The customization cycle is usually 2–4 weeks for the sample stage, depending on solution complexity. Specific timelines are subject to project communication.

Frequently Asked Questions (FAQ)

Q1: What types of fragrance devices is Qiwuecy Ceramic Core suitable for?

Qiwuecy Ceramic Core is suitable for home waterless aroma diffusers, car aroma diffusers, commercial fragrance machines, cold mist diffusers, and portable aroma diffusers. The porosity and pore size of the ceramic core can be customized and adapted according to the essential oil system and atomization requirements of different devices.

Q2: What are the core advantages of a ceramic core compared with a traditional cotton wick?

Ceramic cores are significantly better than traditional cotton wicks in terms of heating uniformity, dry burn resistance, fragrance stability, and service life. Ceramic materials are high-temperature resistant and chemically stable. They do not produce burnt odor or fragrance decay during long-term use. At the same time, precision sintering processes ensure high batch-to-batch consistency.

Q3: Can the ceramic core directly atomize pure essential oil?

Yes. The porous structure of Qiwuecy Ceramic Core achieves full-area liquid guiding of essential oil through capillary action. It can directly atomize pure essential oil without adding water or other diluents. The chemical inertness of the ceramic material ensures that the molecular structure of the essential oil is not changed, resulting in high fragrance restoration.

Q4: How can we confirm whether the ceramic core is suitable for our device?

Customers can provide the device’s essential oil type, target atomization volume, power supply parameters, and structural dimensions. The Qiwuecy technical team will conduct an adaptation assessment and recommend suitable ceramic core parameter solutions. Samples can also be requested for complete machine testing and validation.

Q5: What is the service life of the ceramic core?

Ceramic materials have strong chemical stability, corrosion resistance, and aging resistance. Under normal use conditions, the service life is significantly better than traditional cotton wicks. Actual service life depends on factors such as device power, essential oil characteristics, and usage frequency.
